UltiMaker S7

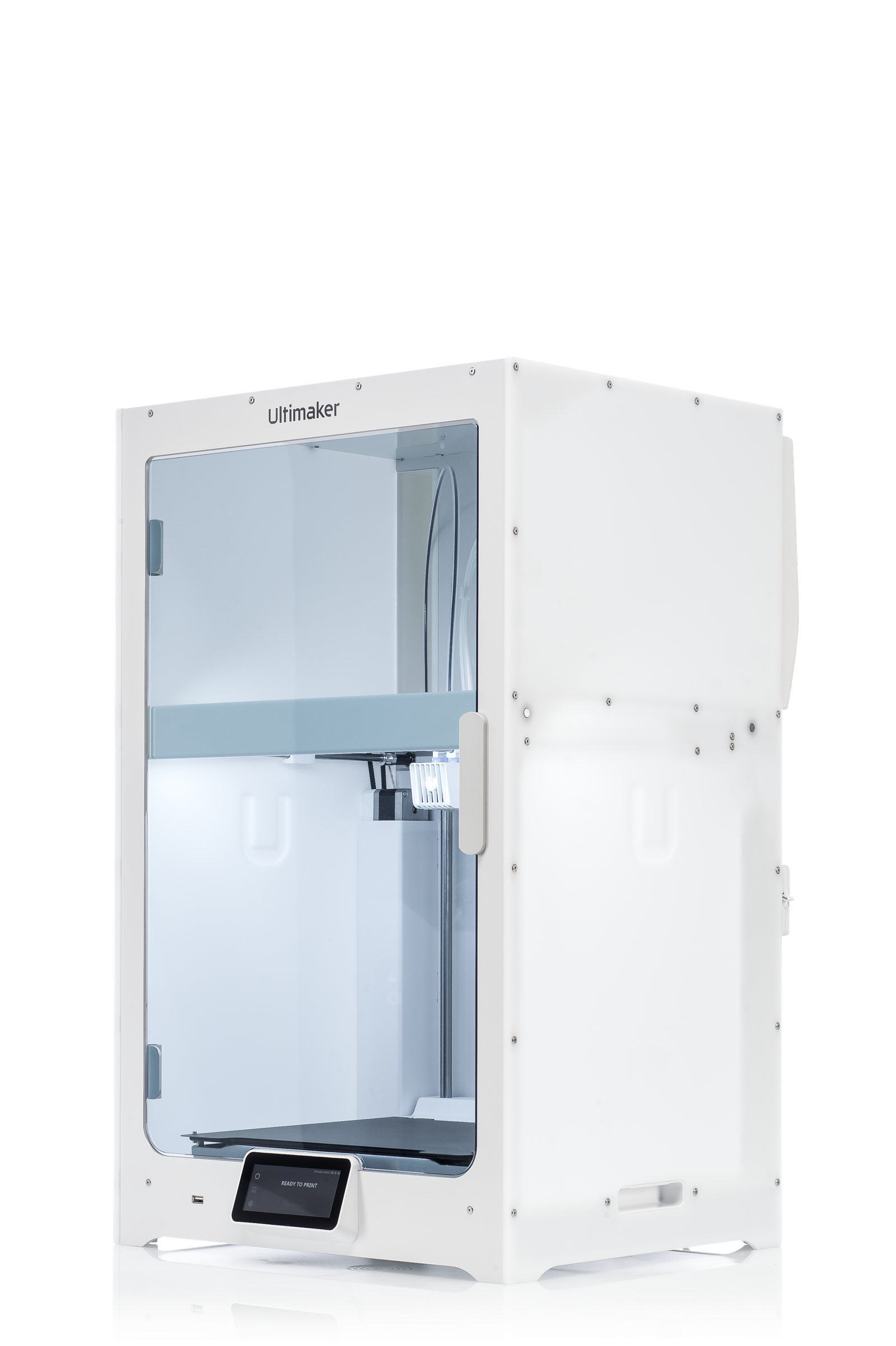

UltiMaker S7 front-right

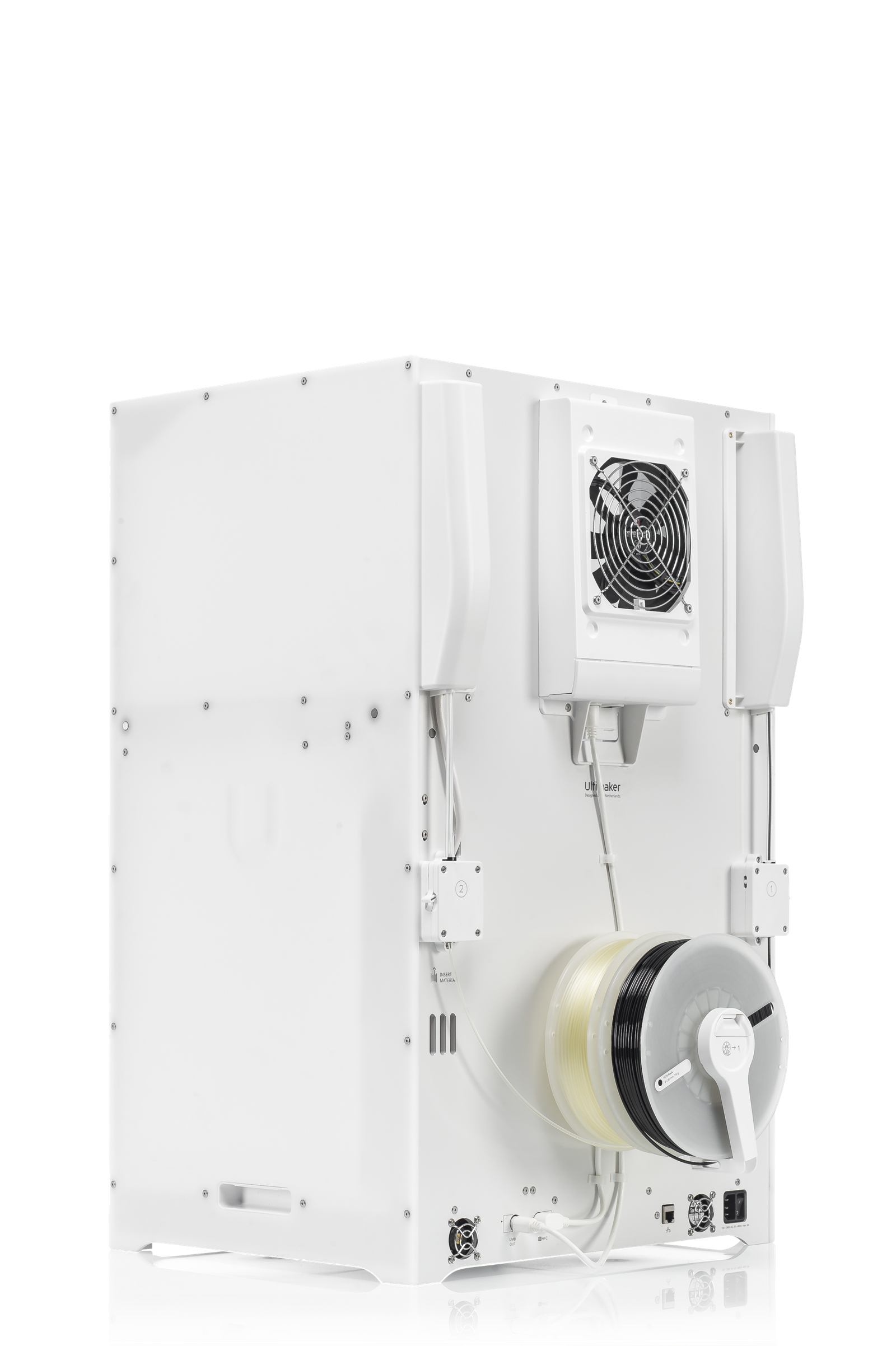

UltiMaker S7 back-right
Kategorija: SKU: UM-0002

UltiMaker S7

A new level of 3D printing success.

We took everything our customers love about the award-winning UltiMaker S5… And made it even better. The S7 is packed full of our latest technology, making it easier than ever to 3D print high-quality parts.

9.373,75 €

Cijena je izražena s PDV-om.

  • Rok isporuke 10-15 dana

Key features

Ultimaker air manager

PEI-coated flexible build plate

More accurate inductive probing

More accurate inductive probing

Ultimaker air manager

Integrated Air Manager

Click and print with 280+ materials

Click and print with 280+ materials

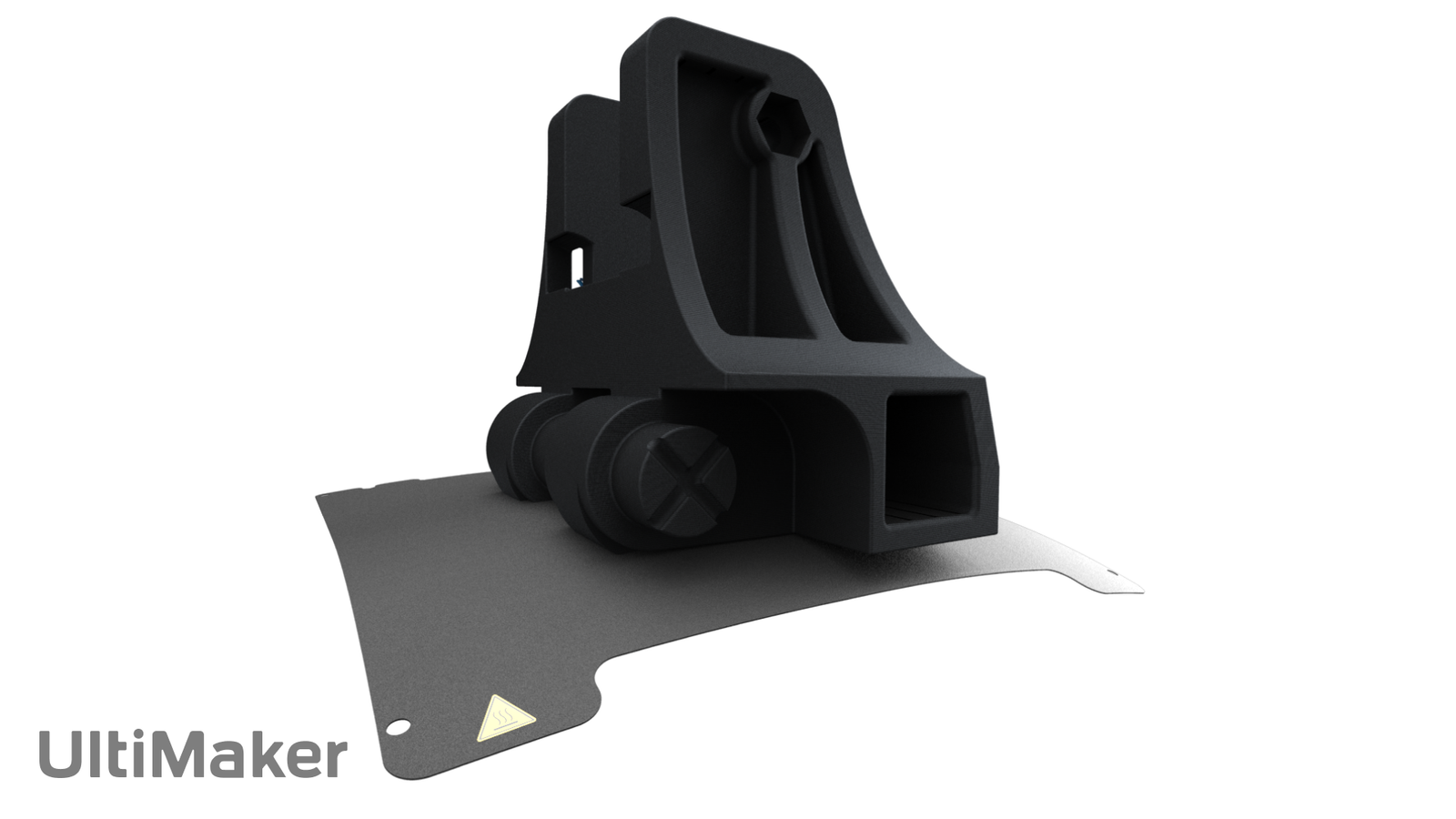

Flexible build plate

Skip using glue and remove parts effortlessly with the PEI-coated flexible build plate. Its patent-pending design uses 25 magnets and 4 pins for perfect alignment – reducing the time spent using the S7 and increasing productivity.

Front-loading bays for 6 spools (including composites)
Materials automatically kept at 25% relative humidity

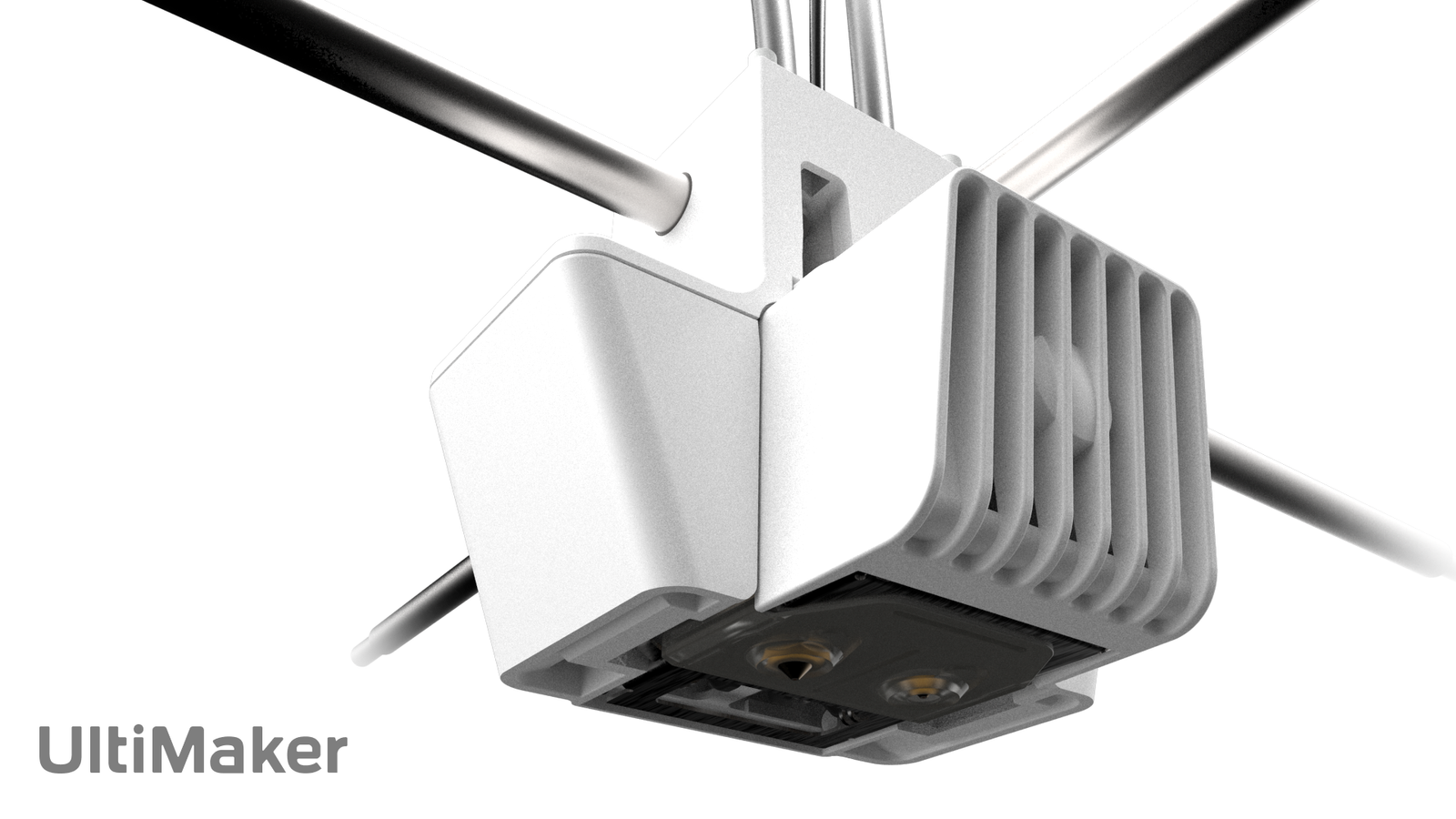

Inductive build plate sensor

A new inductive print head sensor probes the build plate with less noise and more accuracy. And automatic tilt compensation removes the need for thumbscrew bed calibration. Together, these allow you to start a print and walk away – confident in a perfect first layer.

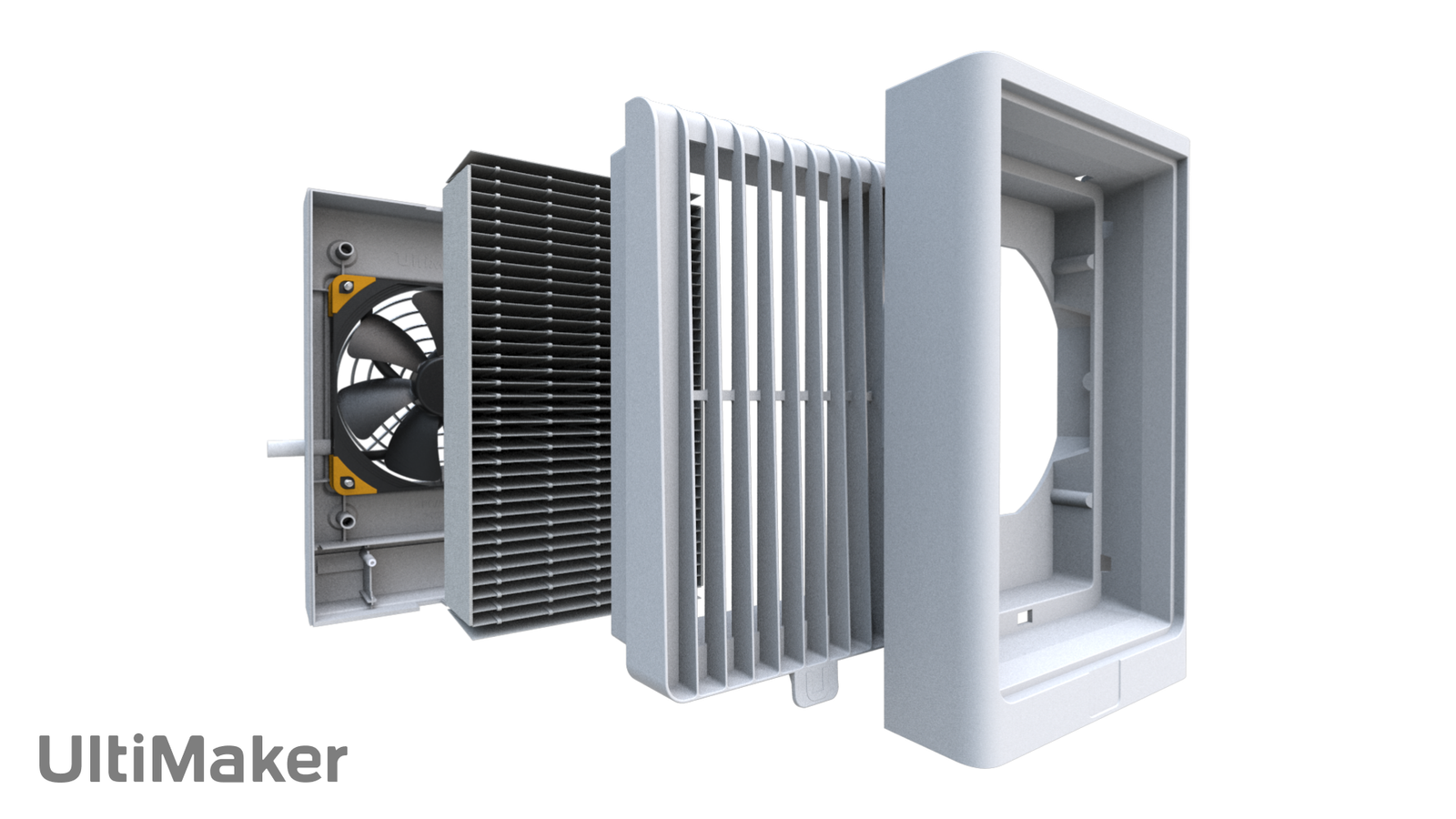

Integrated Air Manager

Not only does this increase air quality peace of mind… It also boosts print quality thanks to its fully enclosed build chamber and single glass door.

s7 air filter
Cura integration

Cura integration

Access the UltiMaker Cura features that speed up your workflow and increase print success – like intent profiles, easy remote printing, and more.

Backwards file compatibility

Backwards file compatibility

If you own an UltiMaker S5, your entire digital library of S5 print files will work flawlessly on the S7 – with no reslicing needed.

Anti-flood sensor

Anti-flood sensor

If you own an UltiMaker S5, your entire digital library of S5 print files will work flawlessly on the S7 – with no reslicing needed.

Dimenzije

Build volume
330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)

Assembled dimensions
W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches)

Print technology
Fused Deposition Modeling (FDM)

Compatible filament diameter
2.85 mm

Weight
29.1 kg (64.2 lbs)

Maximum power output
500 W

Svojstva printera

Layer resolution
0.25 mm nozzle: 150 – 60 micron 0.4 mm nozzle: 200 – 20 micron 0.6 mm nozzle: 300 – 20 micron 0.8 mm nozzle: 600 – 20 micron

XYZ resolution
6.9, 6.9, 2.5 micron

Feeder type
Dual-geared feeder, reinforced for composite materials

Display
4.7-inch (11.9 cm) color touchscreen

Print core replacement
Swappable print cores

Print head
Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.

Nozzle diameters
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Parametri rada

Filter technology
Replaceable EPA filter

Air extraction rate
1 – 50 m³/h (35 m³/h nominal rate for most materials at 23 °C)

Nozzle temperature
180 – 280 °C

Nozzle heat-up time
< 2 minutes

Operating sound
< 51 dBA

Build plate leveling
Advanced active leveling with more accurate inductive sensors

Build plate
PEI-coated flexible steel build plate

Build plate heat-up time
< 5 minutes (from 20 to 60 °C)

Operating ambient temperature
15 – 32 °C (59 – 90 °F)

Non-operating temperature
0 – 32 °C (32 – 90 °F)

Ekosustav

Supplied free software
UltiMaker Cura – print preparation software UltiMaker Digital Factory – printer management software UltiMaker Essentials – enterprise-grade online software tools

Supported OS
MacOS, Windows, and Linux

Plugin integration
SolidWorks, Siemens NX, Autodesk Inventor

Supported file types
UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP

File transfter
Wi-Fi (2.4 and 5 GHz), Ethernet, USB

Sigurnost i sukladnost

Certification
CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

More information
Learn more about UltiMaker S7 Pro Bundle safety and compliance.
